Imperva SecureSphere - Hardware Appliances
Superior Performance, Scalability, and Resilience
Overview:
SecureSphere hardware appliances deliver ultra-fast security, high performance monitoring and auditing, and resiliency for demanding network environments. SecureSphere hardware appliances provide you with the flexibility, reliability, and performance needed to power SecureSphere data center security solutions.
Built around high performance architecture, SecureSphere appliances allow organizations to manage heavy traffic loads without impacting application or network performance. To maximize uptime, SecureSphere X2500, X4500, and X6500 models include redundant, hot-swappable components. SecureSphere appliances deliver a powerful and reliable platform for deploying Imperva's award-winning Web, database, and file security solutions.
Key Capabilities:
- Support high traffic loads with up to multi-gigabit throughput without impacting application and network performance.
- Maximize uptime and ensure reliability with hot-swappable components, redundant power supplies, hard drives and fans.
- Full extensibility with Lights-Out-Management, Hardware Security Module, SSL acceleration, and Fibre channel interface options.
SecureSphere Hardware Appliances:
| SecureSphere Hardware Appliances | |||||
|---|---|---|---|---|---|
 |
 |
|
 |
|
|
| Specifications | X6500 | X4500 | X2500 | X2000 | X1000 |
| Throughput (Web and Database Security products) | 2 Gbps | 1 Gbps | 500 Mbps | 500 Mbps | 100 Mbps |
| Throughput (File Security products) | Throughput (File Security products) Not Available | 4 Gbps | 2 Gbps | Not Available | Not Available |
| Fault Tolerant (Form Factor | Yes (2U) | Yes (2U) | Yes (2U) | No (1U) | No (1U) |
SecureSphere Management Appliances:
Imperva's SecureSphere management products deliver superior performance, scalability and unified management capabilities for any size deployment. Whether you're managing a small data center, or a large number of business units, data centers, or customers, SecureSphere products give you the visibility and control to minimize administrative overhead and ensure a strong data security posture.
The Management Appliances support the SecureSphere Manager and SecureSphere Manager of Managers products.
| SecureSphere Management Appliances | ||
|---|---|---|
 |
 |
|
| Specifications | M150 | M100 |
| FTL/ Form Factor | Yes (2U) | No (1U) |
SecureSphere Stack

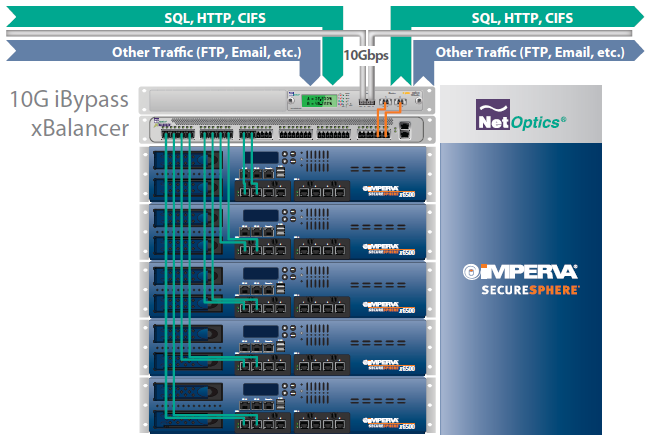

The SecureSphere Stack, powered by Net Optics, provides a scalable, and high performance data security solution for bandwidth intensive applications. The SecureSphere Stack leverages Net Optics xBalancer to distribute 10 Gbps or more of inbound traffic across multiple SecureSphere X6500 gateways. Net Optics xBalancer forwards only relevant protocols to the SecureSphere gateways, ensuring SecureSphere is only inspecting Web, database, or file traffic. The SecureSphere Stack ensures organizations can easily scale SecureSphere Web, database, and file security deployments for high-bandwidth applications and cloud deployments.
| SecureSphere Stack | |
|---|---|
| Specifications | Net Optics Director Pro |
| Throughput (Web, Database, and File Security) | Up to 10Gbps |
| Form Factor | 1U |
| Total Ports (NICs) | 22 x 1 Gbps |
Features:
Scalable. Reliable. Flexible.
Imperva SecureSphere® appliances provide superior performance and resiliency for demanding network environments. With fail open interfaces, SecureSphere platforms offer fast and cost-effective fail over. Out-of-band management enhances security, while front panel status messages and network interfaces improve manageability. SecureSphere appliances deliver a scalable, reliable and flexible platform to power Imperva's Web and database security solutions.
High Performance Architecture
SecureSphere appliances offer ultra-high performance, allowing organizations to consolidate device management and address future bandwidth requirements. Supporting multi-gigabit throughput, tens of thousands of transactions per second, and sub-millisecond latency, SecureSphere appliances can manage heavy traffic loads without impacting application or network performance.
Support Massive Traffic Loads with Multi-Gigabit Throughput
Built on a high-performance architecture, SecureSphere appliances enable you to manage heavy traffic loads without impacting application or network performance. High transaction rates and low latency meet the exacting requirements of the largest enterprises and service providers. SSL acceleration, provided standard with the X6500 model and available as an add-on for other models, offers you lightning-speed SSL performance.
Maximize Uptime with Redundant, Hot-Swappable Components
You can ensure continuous availability with redundant hardware components. The SecureSphere X2500, X4500, and X6500 models include dual, hot-swappable fans, power supplies, and hard drives. SecureSphere appliances deliver a powerful and reliable platform for deploying Imperva's award-winning Web, database, and file security solutions.
Satisfy Security, Management, and Storage Requirements with Expansion Options
SecureSphere appliances can be extended to provide remote, out-of-band management and monitoring, performance acceleration, and more with expansion modules. Options include:
- Lights-Out-Management (LOM)
- Hardware Security Module (HSM)
- SSL acceleration
- Fibre channel interfaces
Deployment:
SecureSphere high performance hardware and virtual appliances enable drop-in deployment with no changes to applications or networks. With centralized management, role-based security, and advanced analytics and reporting, SecureSphere offers an integrated solution that is easy to deploy and manage.
- Non-inline Network Monitoring: Activity monitoring with zero impact on performance or availability
- Transparent Inline Protection: Drop-in deployment and industry-leading performance for proactive security
- Agent-based Monitoring: Lightweight software agents monitor privileged database activities and network traffic
Specifications:
| Hardware Appliance Specifications: | ||||||
|---|---|---|---|---|---|---|
|
|
|
|
|
||
| X6500 | X4500 | X2500 | X2010 | X1010 | ||
| Fault Tolerance | Dual, hot-swap hard drives, power supplies, and fans | Dual, hot-swap hard drives, power supplies, and fans | Dual, hot-swap hard drives, power supplies, and fans | N/A | N/A | |
| Throughput (Web and Database security products) | 2 Gbps | 1 Gbps | 500 Mbps | 500 Mbps | 100 Mbps | |
| Throughput (Web and Database security products) | Not available | Up to 4 Gbps | Up to 2 Gbps | Not available | Not available | |
| Latency | Sub-millisecond | Sub-millisecond | Sub-millisecond | Sub-millisecond | Sub-millisecond | |
| Interface Module Slot 1 | Default | 4 x Copper | 4 x Copper | 4 x Copper | 4 x 1G Copper 2 x 1G Copper (for management) |
4 x 1G Copper 2 x 1G Copper (for management) |
| Optional | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | Not available | Not available | |
| Interface Module Slot 2 | Default | 4 x Copper | None | None | None | None |
| Optional | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | 2 x 1G Fiber SX OR 2 x 10G Fiber SR/LR | Not available | Not available | |
| Max Network Segments | (4) Bridge; (9) Proxy, Non-inline | (4) Bridge; (9) Proxy, Non-inline | (4) Bridge; (9) Proxy, Non-inline | (2) Bridge; (5) Proxy, Non-inline | (2) Bridge; (5) Proxy, Non-inline | |
| Inline Fail Open (Bridging only) | Up to 4 bypass segments | Up to 4 bypass segments | Up to 4 bypass segments | 2 bypass segments | 2 bypass segments | |
| Hard Drive | 2 hot-swap 1 TB | 2 hot-swap 1 TB | 2 hot-swap 500 GB | 1 TB | 1 TB | |
| Memory | 8 GB | 8 GB | 4 GB | 8 GB | 8 GB | |
| Serial Port | RJ45 connector | RJ45 connector | RJ45 connector | RJ45 connector | RJ45 connector | |
| USB Port | 2 | 2 | 2 | 2 | 2 | |
| SSL Acceleration | Included | Optional | Optional | Optional | Optional | |
| Fibre Channel, LOM or HSM | Optional | Optional | Optional | N/A | N/A | |
| Power Supply | Dual 400 W | Dual 400 W | Dual 400 W | 250 W | 250 W | |
| AC Power | 100-240V, 50-60 Hz | 100-240V, 50-60 Hz | 100-240V, 50-60 Hz | 100-240V, 50-60 Hz | 100-240V, 50-60 Hz | |
| Typical Consumption | 290 W | 210 W | 190 W | 110W | 80 W | |
| Typical Heat Output | 990 BTU/Hr | 720 BTU/Hr | 650 BTU/Hr | 375 BTU/Hr | 275 BTU/Hr | |
| Form Factor | 2U | 2U | 2U | 1U | 1U | |
| Dimensions | 17.4 x 20.1 x 3.46 in 443 x 512 x 88 mm | 17.4 x 20.1 x 3.46 in 443 x 512 x 88 mm | 17.4 x 20.1 x 3.46 in 443 x 512 x 88 mm | 17.45 x 16 x 1.73 in 443 x 406 x 44 mm | 17.45 x 16 x 1.73 in 443 x 406 x 44 mm | |
| Weight | 53.3 lbs (24.2 Kg) | 51.10 lbs (23.2 Kg) | 50.44 lbs (22.9 Kg) | 14.1 lbs (6.4 Kg) | 14.1 lbs (6.4 Kg) | |
| Operating Environment | Temperature: 5° - 40° C Relative Humidity: 20% - 90% |
|||||
| Storage Environment | Temperature: 0° - 70° C Relative Humidity: 20% - 90% |
|||||
| Safety Agency Approval | CE/FCC/cTUVus/VCCI/CCC/KCC | CE/FCC/cTUVus/VCCI/CCC/KCC/CB | ||||
| Supported SecureSphere Products | - Web Application Firewall - Database Activity Monitor - Database Firewall - SecureSphere for SharePoint |
- Web Application Firewall - Database Activity Monitor - Database Firewall - File Activity Monitor - File Firewall - SecureSphere for SharePoint |
- Web Application Firewall - Database Activity Monitor - Database Firewall - File Activity Monitor - File Firewall - Database Assessment - SecureSphere for SharePoint |
|||
| Database Agents Included1 | 100 | 50 | 25 | N/A | N/A | |
| File Agents Included | Not available | 200 | 100 | N/A | N/A | |
| Database Vulnerability Assessments Included2 | 400 | 200 | 100 | 100 | 25 | |
| Number of users included with File Security products3 | Not available | 1,000 | 250 or 500 | N/A | N/A | |
1 Database agents only included with SecureSphere Database Activity Monitoring and Database Firewall.
2 Database assessments only included with Discovery and Assessment Server, Database Activity Monitoring, and Database Firewall.
3 File Security products: File Activity Monitoring and File Firewall.
| Management Appliance Specifications: | ||
|---|---|---|
|
|
|
| M150 | M110 | |
| Fault Tolerance | Dual, hot-swap hard drives, power supplies, and fans | N/A |
| Interfaces | 2 x 1GbE Copper | 2 x 1GbE Copper |
| Memory | 4 GB | 8 GB |
| Hard Drive | 2 hot-swap 300 GB | 500 GB |
| Serial Port | RJ45 connector | RJ45 connector |
| USB Port | 2 | 2 |
| LOM or Fibre Channel | Optional | N/A |
| Power Supply | Dual 400 W | 250 W |
| AC Power | 100-240V, 50-60 Hz | 100-240V, 50-60 Hz |
| Typical Consumption | 190 W | 110 W |
| Typical Heat Output | 650 BTU/Hr | 375 BTU/Hr |
| Form Factor | 2U | 1U |
| Dimensions | 17.4 x 20.1 x 3.46 in (443 x 512 x 88 mm) |
17.45 x 16 x 1.73 in (443 x 406 x 44 mm) |
| Weight | 22.7 Kg (50 lbs) | 14.1 lbs (6.4 kg) |
| Operating Environment | Temperature: 5° - 40° C, Relative Humidity: 20% - 90% | |
| Storage Environment | Temperature: 0° - 70° C, Relative Humidity: 20% - 90% | |
| Safety Agency Approval | CE/FCC/cTUVus/VCCI/CCC/KCC | |
| Supported SecureSphere Products | Manager Manager of Managers |
Manager |
| SecureSphere Stack Appliance Specifications: | ||
|---|---|---|
 |
||
| Net Optics xBalancer | Net Optics 10 Gigabit iBypass Switch | |
| Throughput | Up to 480Gbps aggregated throughput | Up to 10Gbps aggregated throughput |
| Interfaces | 24 x SFP 1G/SFP+ 10 G Fiber or Copper 1 x 10/100/1000 RJ45 Copper for Management 1 x Cisco DB9 to RJ45 for CLI Configuration |
2 x Duplex LC monitoring ports 2 x Duplex LC network ports |
| Fault Tolerance | Hot-swappable power supplies and fans | Redundant power supplies, fail open or close |
| AC Power | AC Input: 100-240VAC, 50/60 Hz DC Input: -40VDC nominal, 13.9 A |
100-240VAC, 1AMP, 47-63Hz |
| Form Factor | Surface or 19" rack mount (1U) | Rack mountable using a rack panel frame (2 slots) |
| Dimensions | 19.7" deep x 19.0" wide x 1.75" high 500 x 483 x 44 mm |
6.5" wide x 14" deep x 1.125" high 165.1 x 355.6 x 28.6 mm |
| Weight | 13.5 lbs (6.12 kg) | 2.85 lbs (1.29 kg) |
| Operating Environment | Temperature: 0° - 40° C Relative Humidity: 10% - 95% |
Temperature: 5° - 40° C Relative Humidity: 10% - 95% |
| Storage Environment | Temperature: -10° - 70° C Relative Humidity: 10% - 95% |
Temperature: -10° - 70° C Relative Humidity: 10% - 95% |
| Safety Agency Approval | MET, CE, FCC, VCCI, C-Tick, KC, ME06, CCC, AR, RoHS, and WEEE compliant | Fully RoHS compliant, UL 60950-1, CSA C22.2 No.60950-1, IEC 60950-1:2005 (2nd Edition), EN 60950-1:2006 |
Documentation:
Download the SecureSphere Appliance Datasheet (PDF).
Download the Net Optics Diretor Pro Datasheet (PDF).
